SPECIFICATIONS

Applicable Lights: LED Strip

Brand Name: GLEDOPTO

Certification: ce,EMC,LVD,ROHS

Connection Mode: WiFi

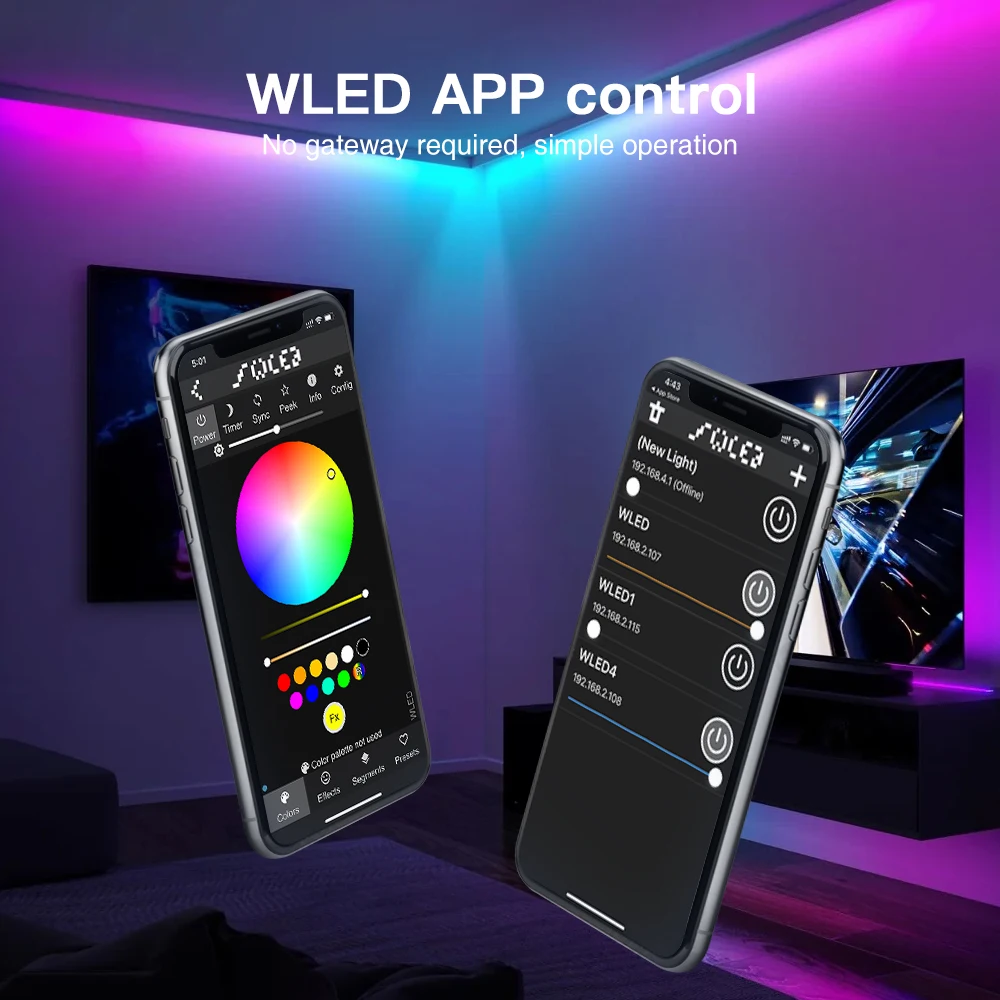

Controled Method: WLED APP control

Features: Ultra Mini

High-concerned chemical: None

Item Type: RGB controler

Material: ABS

Max. Load Power: 240

Model Number: GL-C-309WL-1

Origin: Mainland China

Oscillation frequency: 60HZ

Power Source: DC

Remote Distance: 30m

Voltage: 5-24V

Warranty: 2 years

Wattage: 240

Attention:

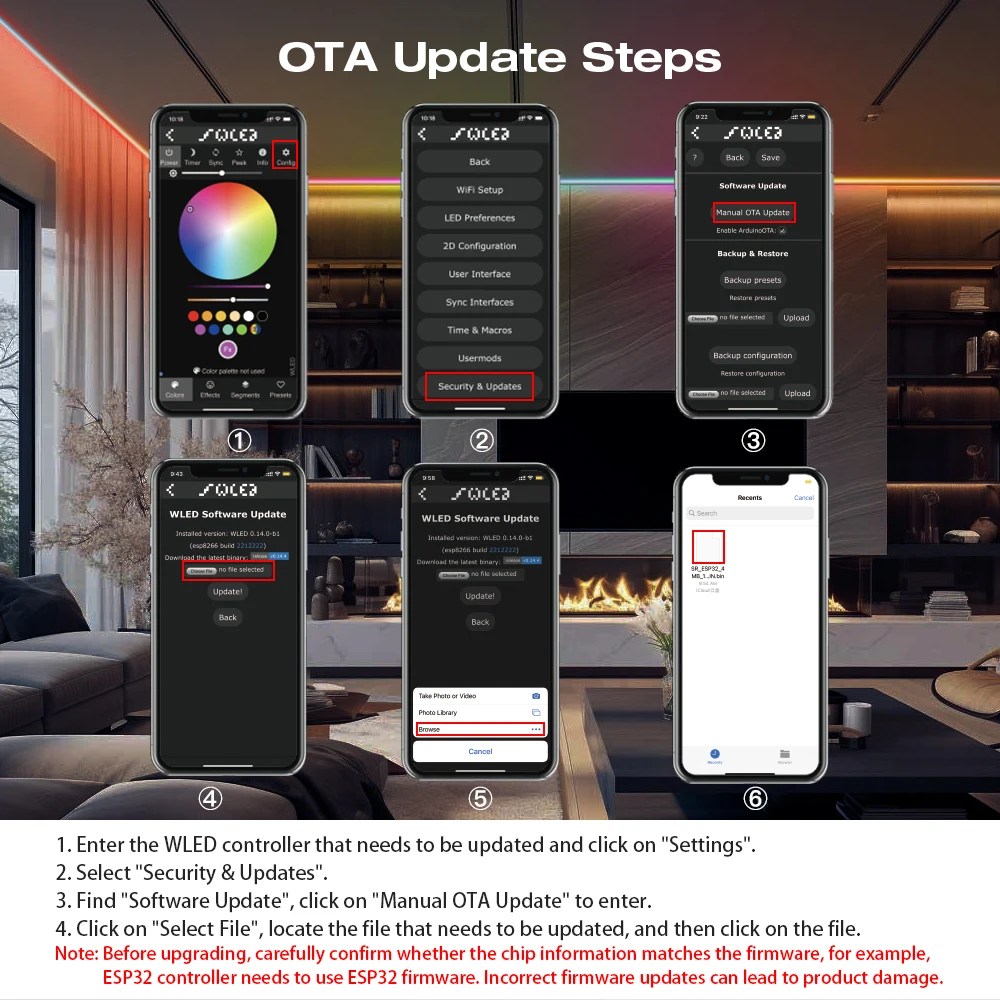

The chip of this controller is ESP32. Please carefully confirm the chip version information of the firmware before upgrading. Incorrect firmware upgrades will cause product damage.

Please note：

This Ultra Mini ESP32 WLED controller offers two types of options: with Microphone Function and No Microphone Function.

Please choose according to your needs.

Q&A or more info, please contact us on line, and we will answer you in time.

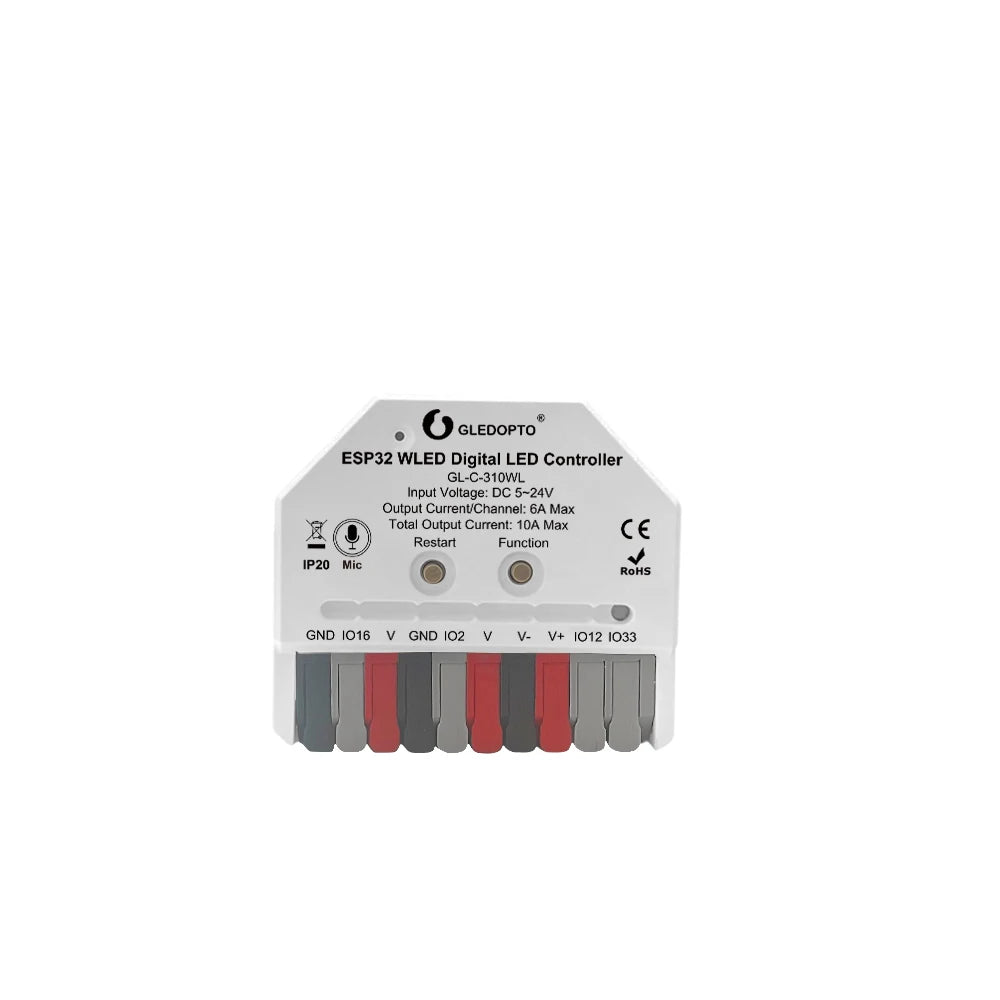

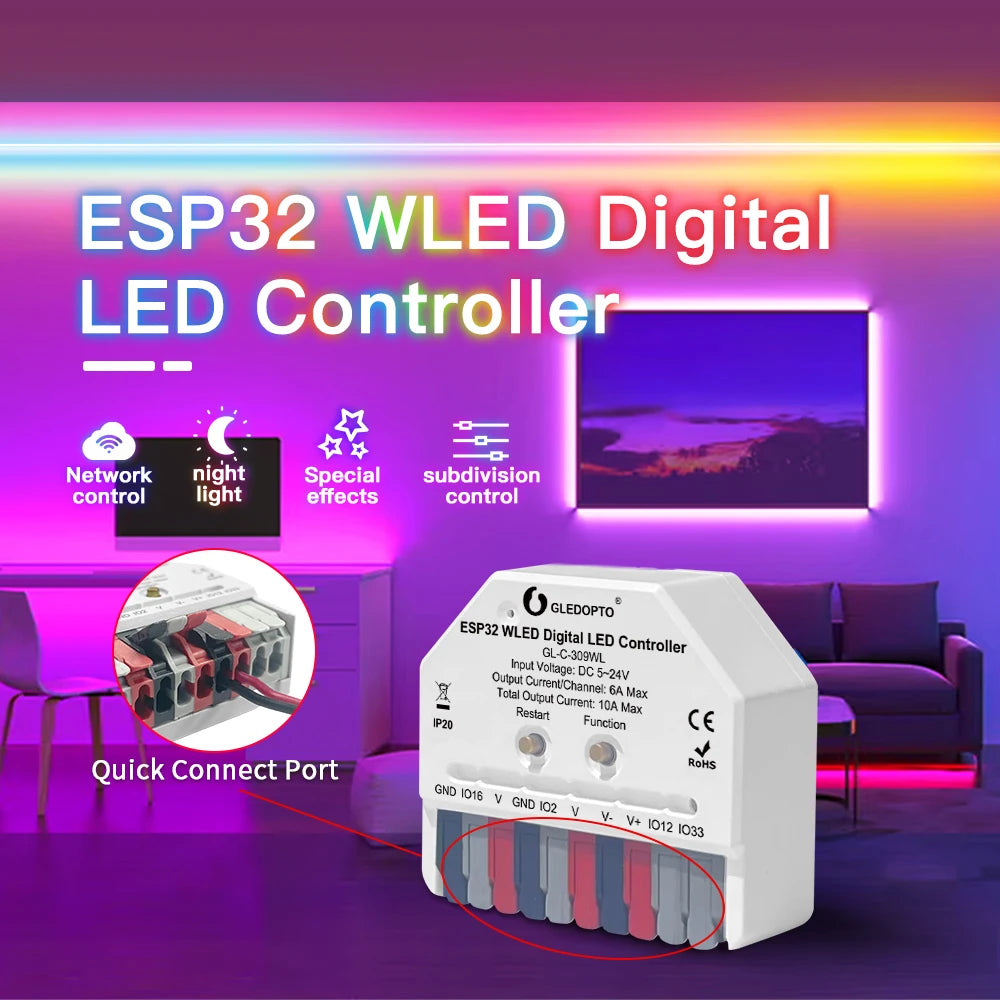

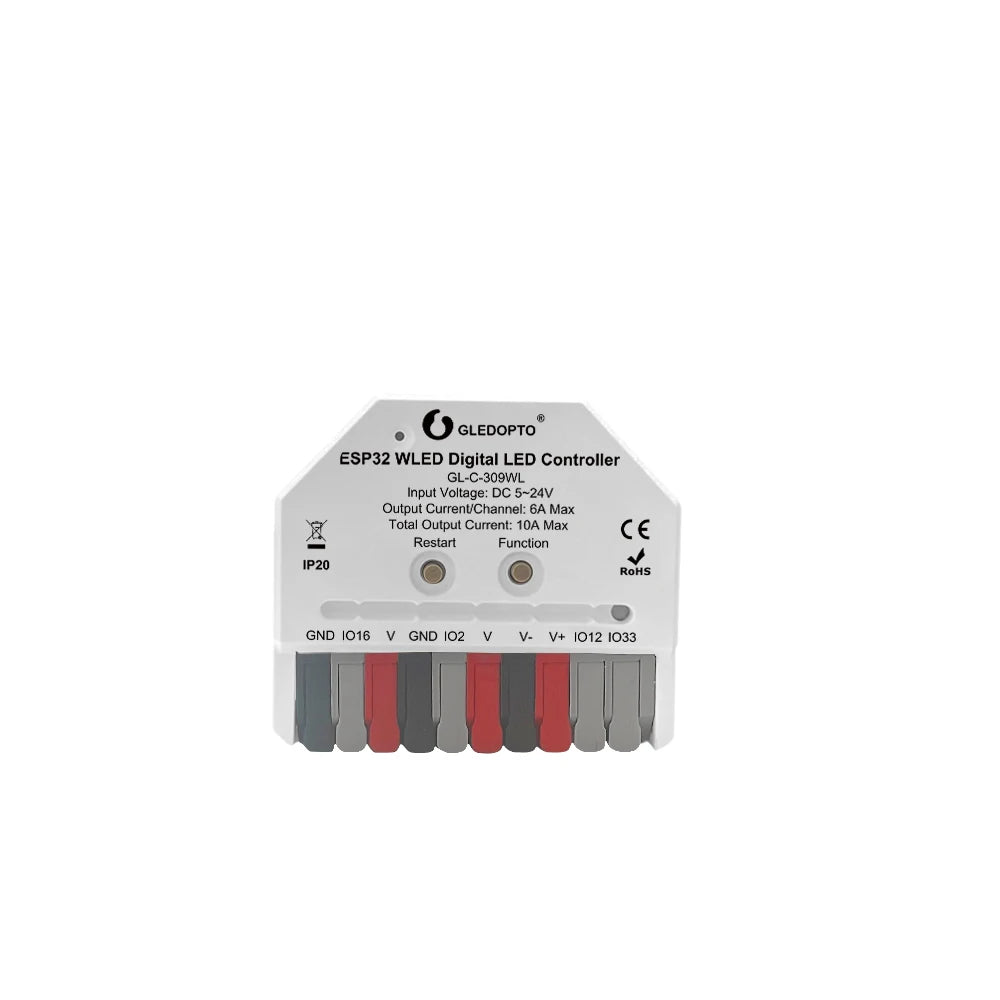

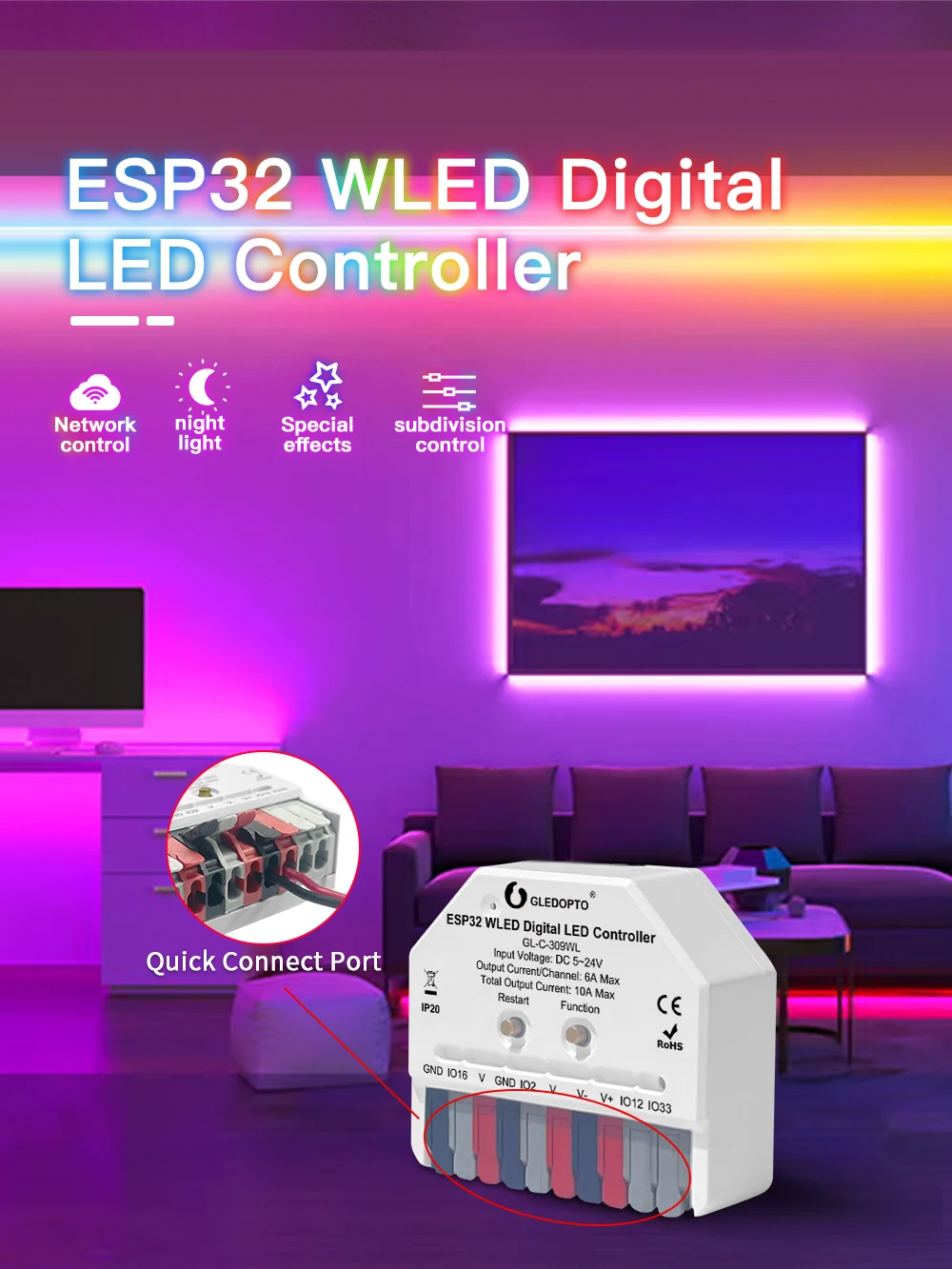

Product Name:Ultra Mini ESP32 WLED Strip Light Controller

Model No.:GL-C-309WL/GL-C-310WL

Voltage: DC 5-24V

IC Quantity: 800 Max

Total Current: 10A Max

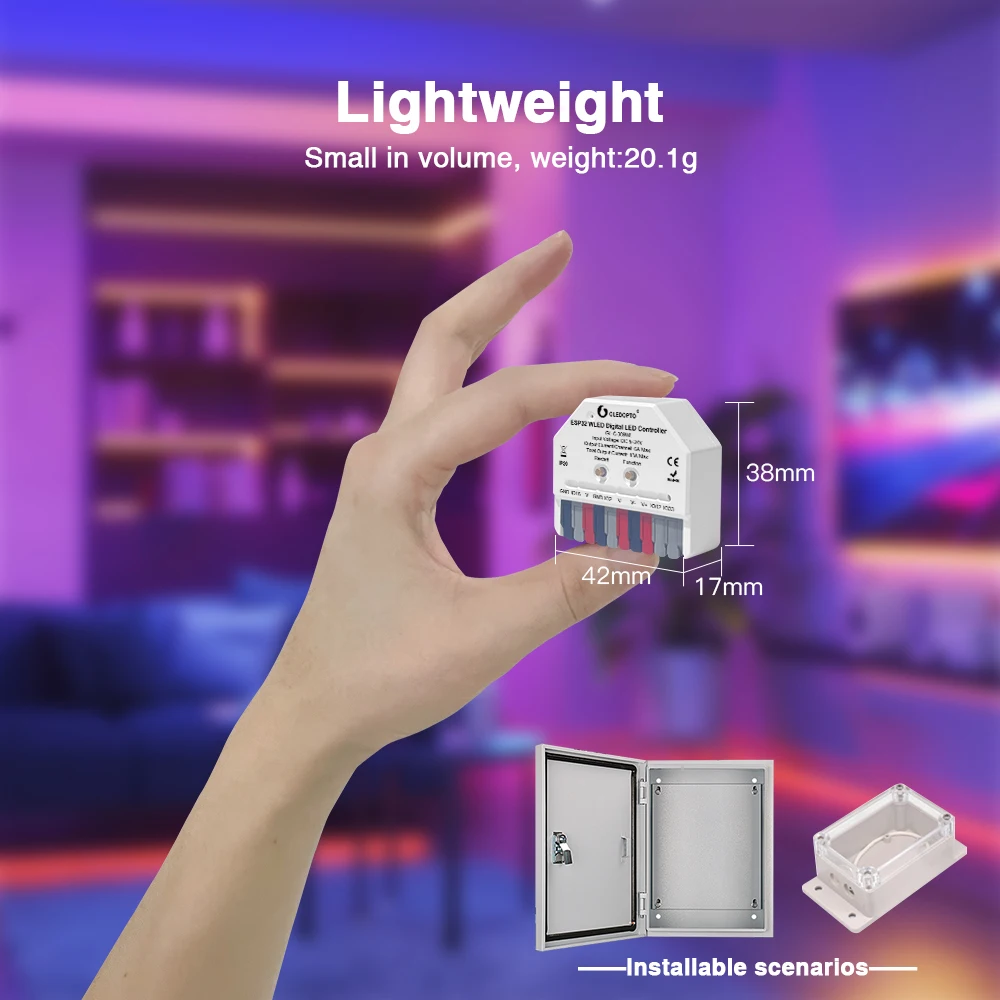

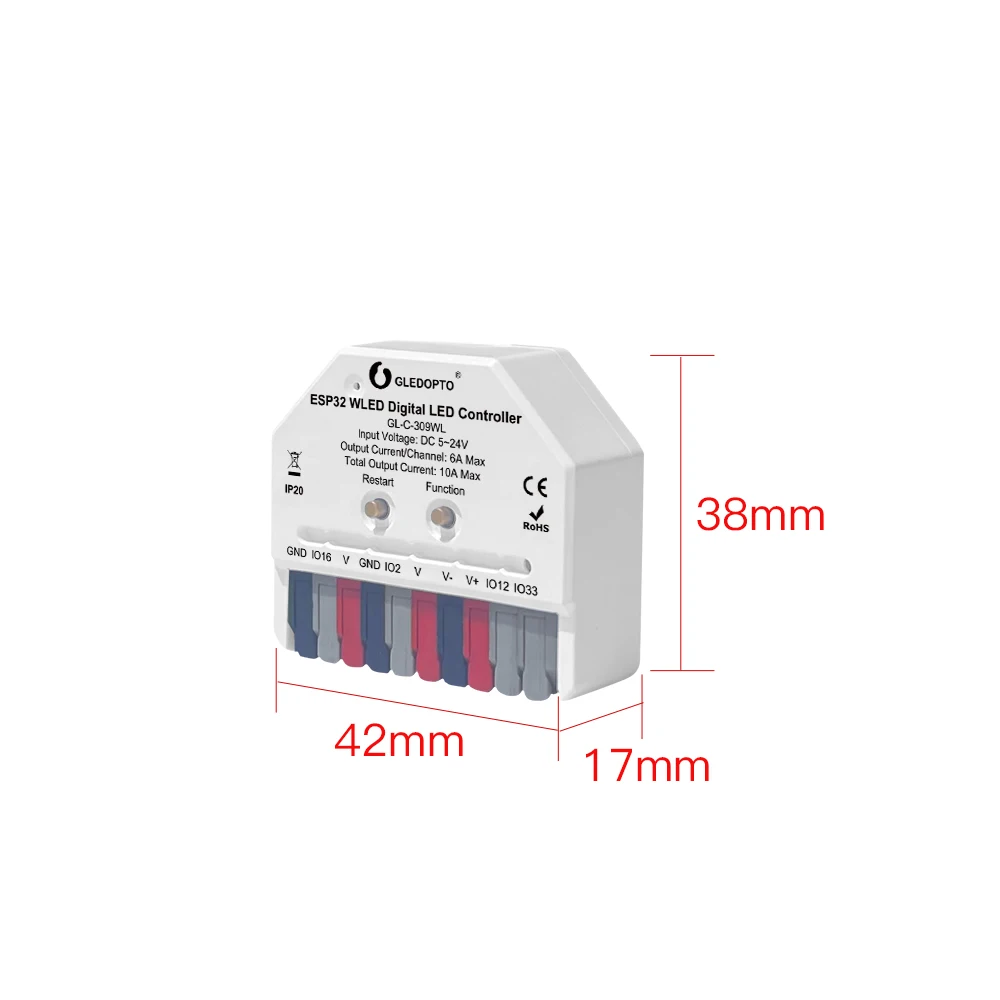

Size: 42*38*17mm

Operating Temperature:-20-45°C

Supported Strip: WS2811, SK6812, SM16703P, WS2812, etc

1pcs* Ultra Mini ESP32 WLED Strip Controller

1pcs* User Manual
